Base station electrically adjustable dual-polarized plate antenna
Product Introduction
The antenna is specially designed to build stable mobile communication signals, suitable for areas that require wide-area coverage such as rural areas, suburbs, and industrial parks. It can effectively solve the problems of weak network signals and insufficient coverage of operators. The product achieves large-scale signal coverage through precise beam control and low-loss design, improving network coverage efficiency and user experience in edge areas. It is widely used in low-frequency network construction, especially suitable for areas with high requirements for signal coverage breadth.
-
High gain effectively enhances signal strength, improves communication quality, and expands coverage;
-
Adopts dual-polarization technology, which can improve spectrum utilization and enhance anti-interference ability;
-
Multi-port, high-efficiency communication, and large spectrum compatibility range;
| Index | Parameter |
|
Frequency Range |
2× (703-803) |
|
Polarization Mode |
±45 |
|
Electrical Downtilt |
2°~12° |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
|
Third-order Intermodulation |
≤-107 (dBm@2×43dBm) |
|
Average Power Capacity |
≥80W (single port) |
|
Peak Power Margin |
≥800W (single port) |
|
Port Isolation |
≥25dB |
|
Horizontal Plane Half-power Beamwidth |
70±6° |
|
Vertical Plane Half-power Beamwidth |
≥9° |
|
Gain |
≥15.5dBi |
|
Electrical Adjustment Method |
Built-in RCU, pluggable |
|
Extreme Wind Speed |
200km/h |
Related Products

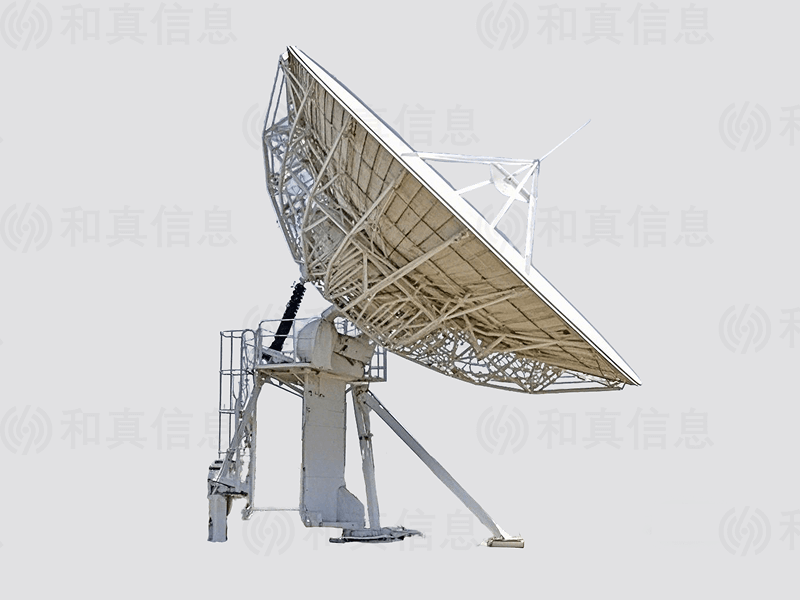

Fixed station satellite communication antenna
