Low-cost data link
Product Introduction
It is used to complete bidirectional wireless data transmission between high-speed aircraft and the ground, providing a highly reliable transmission channel for information such as data and images between the aircraft and the ground system.
-
Realize stable data relay at low cost;
-
High sensitivity, meeting the needs of most scenarios;
-
Support free customization of multiple parameters;
| Index | Parameter |
|
Frequency Range |
L, S, C, X, Ku bands, customizable |
|
Communication Rate |
1Mbps/2Mbps/4Mbps/8Mbps/10Mbps |
|
Modulation Method |
QPSK |
|
Communication Distance |
≥100km@2Mbps, customizable |
|
Transmit Power |
24W(10W, 20W and below are available in different gears) |
|
Sensitivity |
≤-98dBm@2Mbps |
|
Adaptation Speed |
Supersonic |
|
Power Consumption |
≤30W |
|
Operating Temperature |
-40 ~ +60℃, customizable |
|
Size |
130mm×87mm×20mm, customizable |
|
Weight |
≤300g |
Related Products
GNSS UAV four-arm helical antenna
Low-latency networking data link
Low-cost data link
Satellite-borne multi-purpose antenna
Aircraft signal detection antenna
Aircraft miniaturization antenna

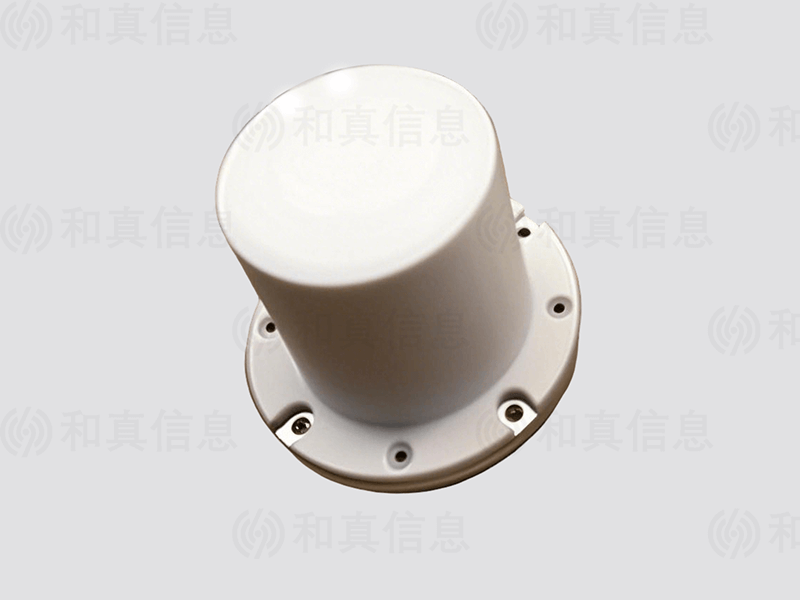

Aircraft universal telemetry antenna
